Equipment characteristics of bell-jar bright annealing furnace
Bell-type bright annealing furnace can be widely used for bright annealing of tape, coil, wire, etc., such as non-ferrous metals copper, aluminum alloy and ferrous metals, carbon steel, silicon steel, alloy steel and so on.
High convection bell-type bright annealing furnace is the contemporary international recognized one of the advanced heat treatment equipment with high production efficiency, product quality, low energy consumption, pollution-free, automatic operation, safe and reliable.
The heat treatment process is that metal material is heated to the appropriate temperature, maintained for a certain time, and then slowly cooled. Common annealing processes are: recrystallization annealing, stress relief annealing, spheroidizing annealing, complete annealing and so on. The purpose of annealing: mainly to reduce the hardness of metal materials, improve the plasticity to facilitate cutting or pressure processing, reduce residual stress, improve the organization and the homogenization of composition or preparation for the follow-up treatment.
We can provide professional customized production lines, high-quality teams, and worry-free after-sales service. For more details, please visit "Contact Us".
The bell-jar bright annealing furnae from Shanghai Fortune Electric Co., Ltd

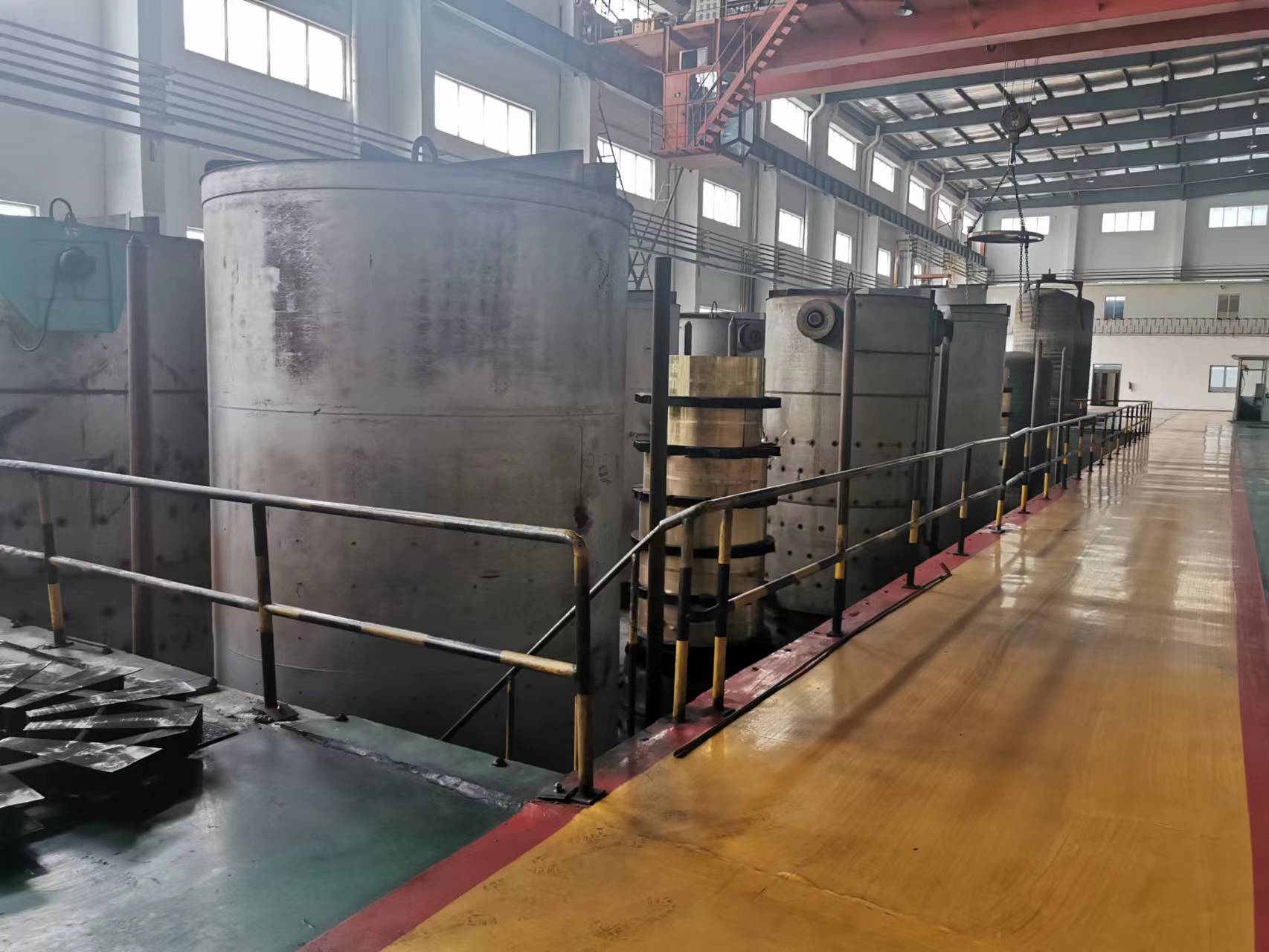

(bell-jar bright annealing furnace)

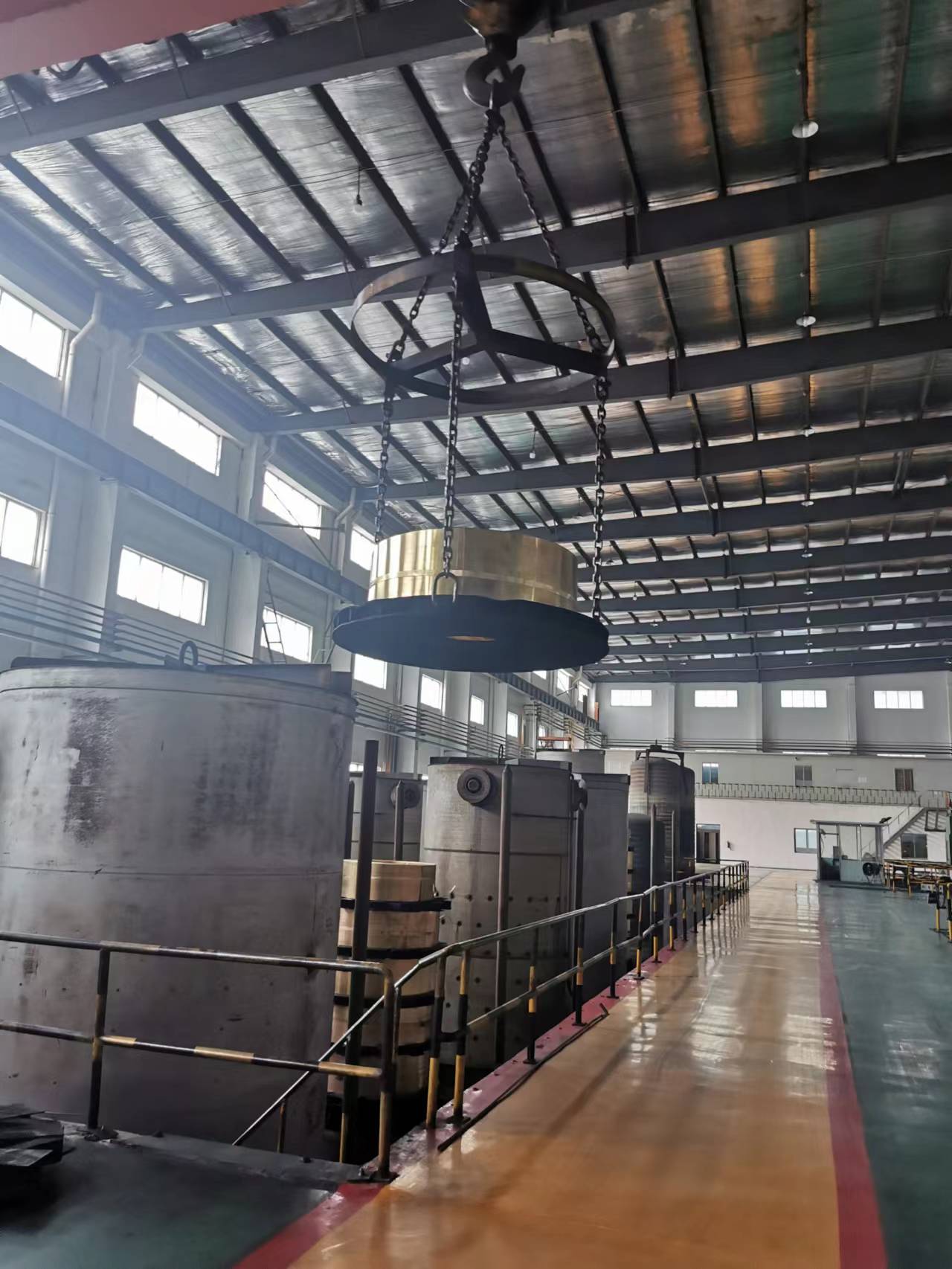

(bell-jar bright annealing furnace)

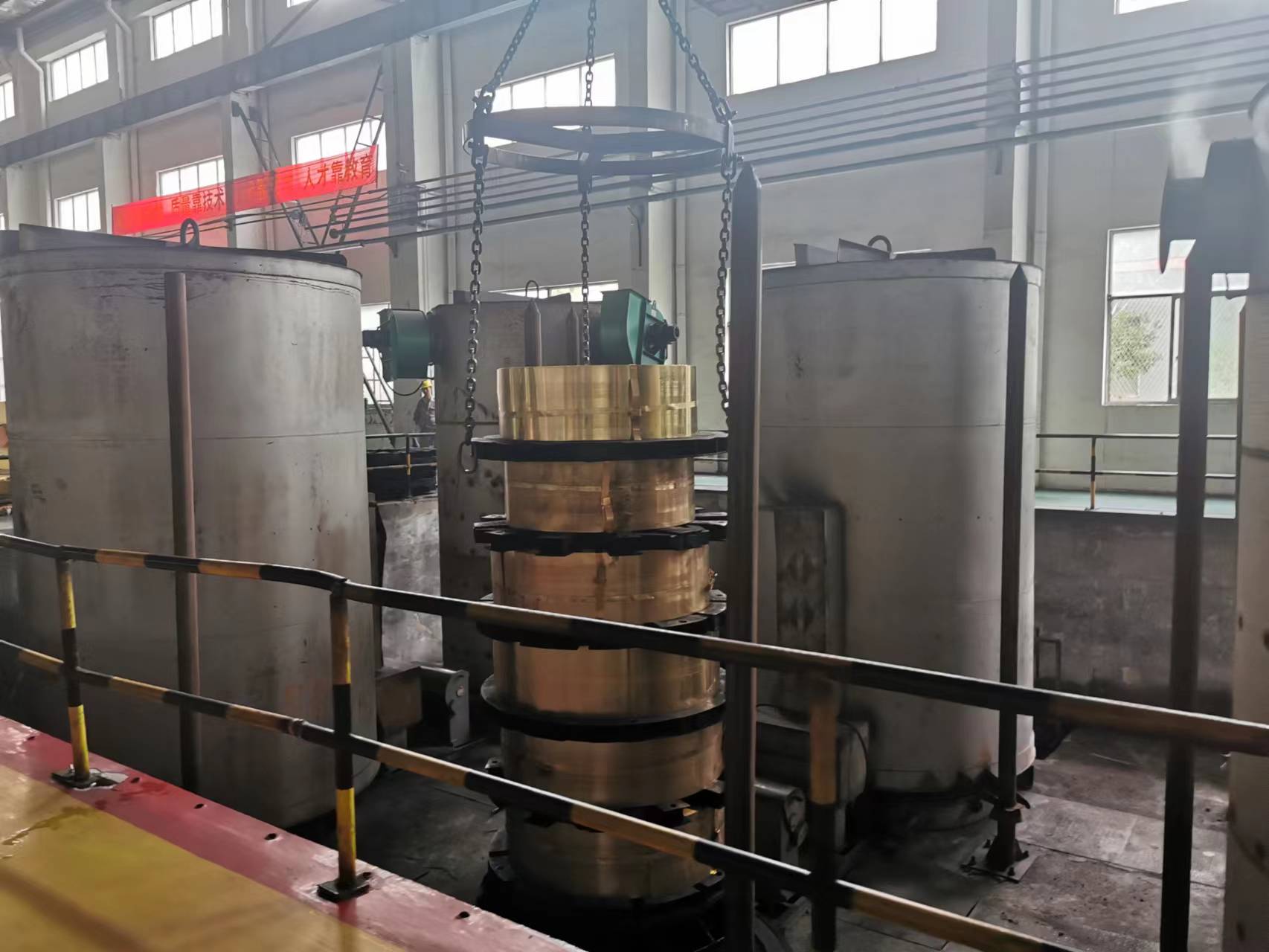

(bell-jar bright annealing furnace)
Equipment parameters of bell-jar bright annealing furnace
This equipment is suitable for bright annealing process of wire materials，steel strip, cooper strip, silicon-steel strip, roll core of transformer, etc. under nitrogen protection. The equipment is heating and cooling quickly, uniform temperature and prominent energy saving.
Model
Size of Annealed Material Diameter × Height(mm)
Content in Max(t)
Rated Power(KW)
Temperature in Max(℃)
FX-120-8
Φ1000×1600
5
120
850
FX-180-8
Φ1200×2000
10
180
850
FX-240-8
Φ1500×2000
15
240
850
FX-280-8
Φ1500×2500
20
280
850
FX-380-8
Φ1800×2500
30
380
850
FX-450-8
Φ2200×2500
40
450
850
FX-650-8
Φ2400×3000
50
650
850
