Equipment characteristics of a upwards continuous casting machine

The oxygen-free upwards continuous casting machine is mainly used for producing bright and oxygen-free copper rods and copper flat strips. Raw materials are molten in the melting furnace, and the copper liquid is covered with coke and flake graphite to avoid oxidation. After melting process, the holding furnace keeps the copper liquid temperature at about 1150°C. The casting machine crystallizes the copper liquid quickly in crystallizer, and continuously output copper rods (copper flat strips).
The unit mainly consists of double-body furnace, upwards continuous casting machine, wire distribution frame, take-up machine, etc.. The upwards continuous casting machine is equipped with servo motor. It is controlled by PLC system and the technical data is easy to adjust.

We can provide professional customized production lines, high-quality teams, and worry-free after-sales service. For more details, please visit "Contact Us".

The upwards continuous casting machine from Shanghai Fortune Electric Co., Ltd

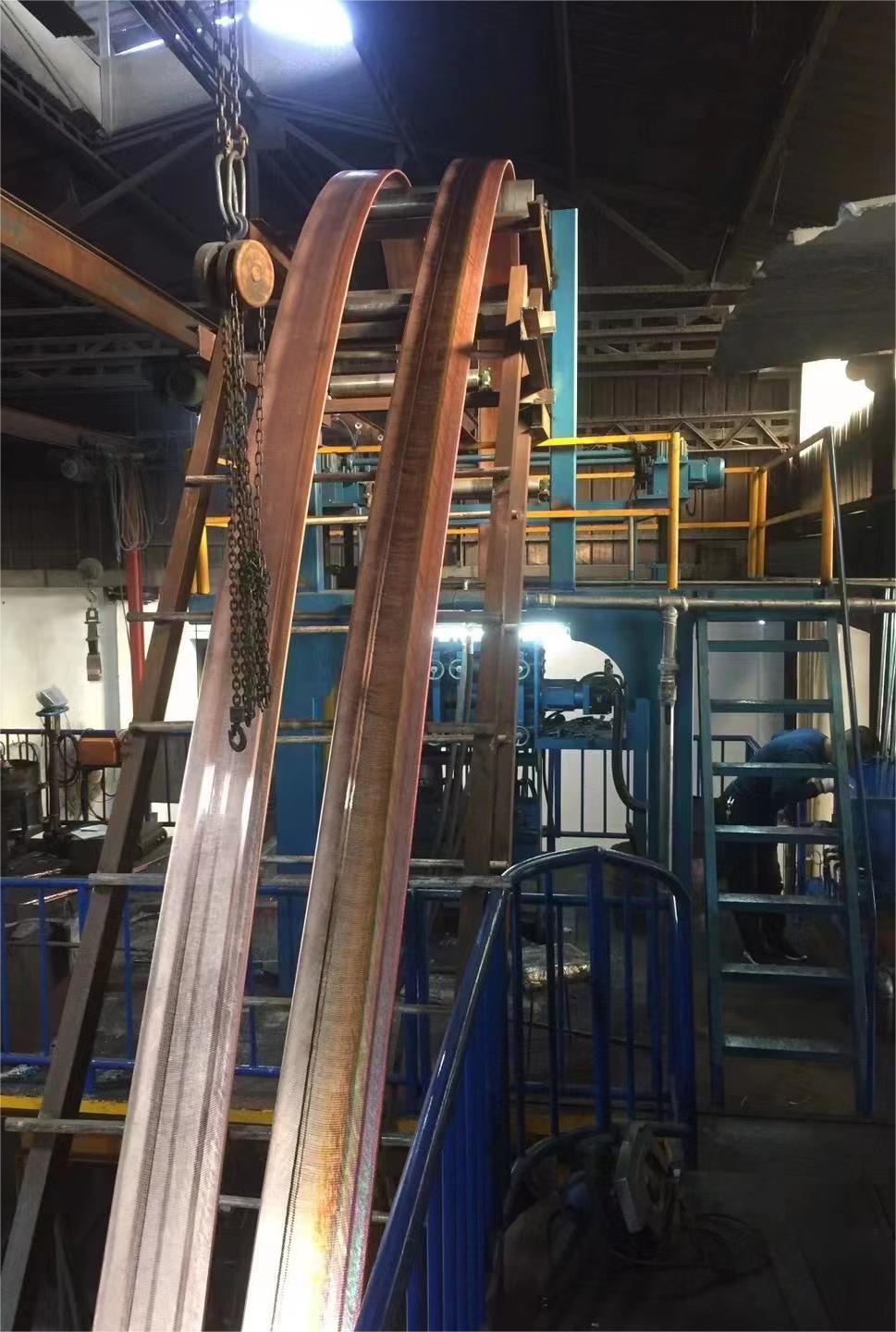

(the upwards continuous casting machine for oxygen-free copper bar)

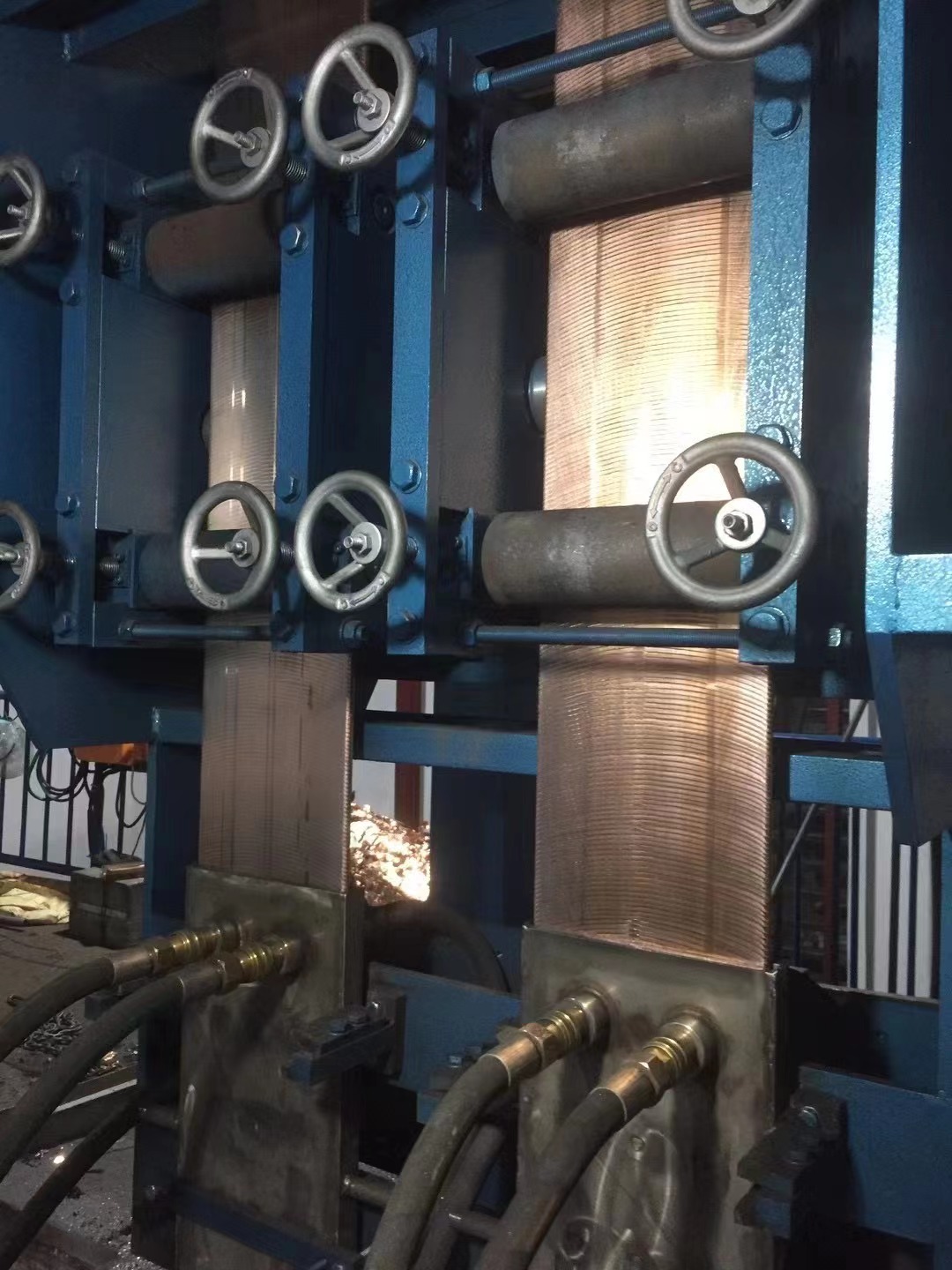

(crystallizer & traction machine in upwards continuous casting machine for oxygen-free copper bar)

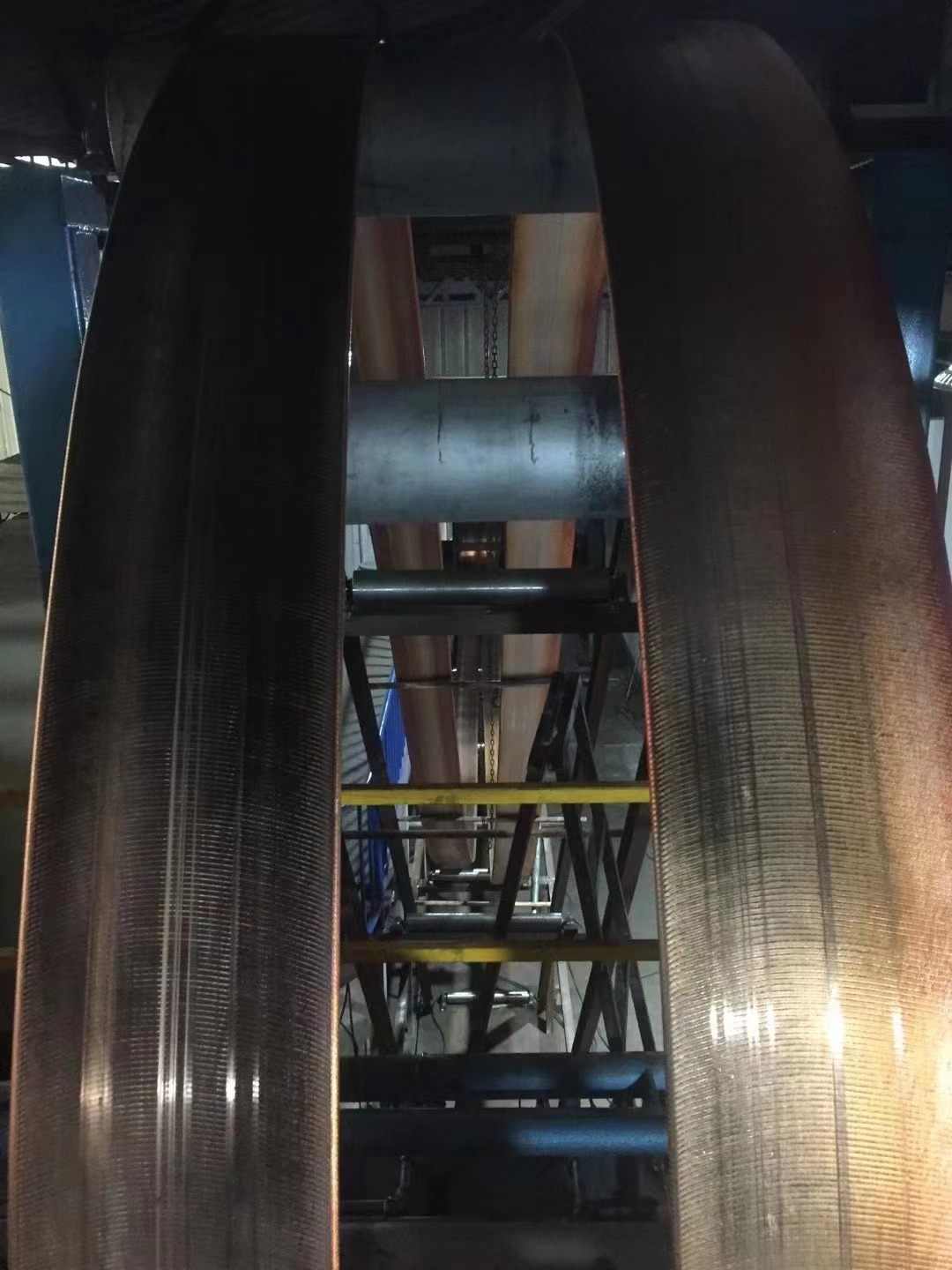

(the upwards continuous casting machine for oxygen-free copper bar)

Types	2000T Ф8mm～Ф14.4mm		2000T Ф17mm～Ф30mm
Main technical parameters	1	Model: SYJ0408-I2	Model: SYJ0417-I2
	2	Annual productivity: 2000T	Annual productivity: 2000T
	3	Casting rods: four	Casting rods: four
	4	Casting diameter: Ф8mm→Ф14.4mm	Casting diameter: Ф17mm→Ф30mm
	5	Upwards casting speed: 0～3000mm/min	Upwards casting speed: 0～1000mm/min
	6	Annual working time: 7920h	Annual working time: 7920h
	7	Liquid level tracking precision: ±2mm	Liquid level tracking precision: ±2mm
	8	Take-up specification: φ700mm×φ1500mm×800mm	Take-up specification: φ700mm×φ1500mm×800mm
	9	Copper melting rate: 260kg/h	Copper melting rate: 260kg/h
	10	Power consumption: <350kwh/ton	Power consumption: <350kwh/ton
	11	Take-up mode: frequency conversion automatic take-up	Take-up mode: frequency conversion automatic take-up
	12	Driving type of take-up reel: PLC control, frequency conversion automatic coil	Driving type of take-up reel: pushed by copper rod, traversing manually
	13	Feeding type: electrolytic copper	Feeding type: electrolytic copper
	14	Upwards casting driving type: AC servo motor, gapless synchronous gear belt transmission	Upwards casting driving type: AC servo motor, gapless synchronous gear belt transmission
	15	Clamping type: by cylinder	Clamping type: manual
	16	Operating interface: displayed and controlled through touch screen	Operating interface: displayed and controlled through touch screen
	17	Installed capacity:150KW AC three-phase 380	Installed capacity:150KW AC three-phase 380

Types	3000T Ф8mm～Ф14.4mm		3000T Ф17mm～Ф30mm
Main technical parameters	1	Model: SYJ0608-I3	Model: SYJ0617-I3
	2	Annual productivity: 3000T	Annual productivity: 3000T
	3	Casting rods: six	Casting rods: six
	4	Casting diameter: Ф8mm→Ф14.4mm	Casting diameter: Ф17mm→Ф30mm
	5	Upwards casting speed: 0～3000mm/min	Upwards casting speed: 0～1000mm/min
	6	Annual working time: 7920h	Annual working time: 7920h
	7	Liquid level tracking precision: ±2mm	Liquid level tracking precision: ±2mm
	8	Take-up specification: φ700mm×φ1500mm×800mm	Take-up specification: φ700mm×φ1500mm×800mm
	9	Copper melting rate: 380kg/h	Copper melting rate: 380kg/h
	10	Power consumption: <350kwh/ton	Power consumption: <350kwh/ton
	11	Take-up mode: frequency conversion automatic take-up	Take-up mode: frequency conversion automatic take-up
	12	Driving type of take-up reel: PLCcontrol，frequency conversion automatic coil	Driving type of take-up reel: pushed by copper rod, traversing manually
	13	Feeding type: electrolytic copper	Feeding type: electrolytic copper
	14	Upwards casting driving type: AC servo motor, gapless synchronous gear belt transmission	Upwards casting driving type: AC servo motor, gapless synchronous gear belt transmission
	15	Clamping type: by cylinder	Clamping type: manual
	16	Operating interface: displayed and controlled through touch screen	Operating interface: displayed and controlled through touch screen
	17	Installed capacity: 200KW AC three-phase 380	Installed capacity: 200KW AC three-phase 380
