Equipment characteristics of a horizontal continuous casting machine
The unit is composed of a medium frequency induction furnace, a medium frequency coreless combination furnace, a micro-travel drawing machine, a synchronous cutting machine, and a wire drawing machine. The PLC automatically controls the working program. The process parameters are easy to adjust, which significantly improves the quality of the castings. It is characterized by advanced technology, novel structure, and significant energy saving. It is suitable for the production of copper alloys such as brass and bronze.
We can provide professional customized production lines, high-quality teams, and worry-free after-sales service. For more details, please visit "Contact Us".
The horizontal continuous casting machine from Shanghai Fortune Electric Co., Ltd

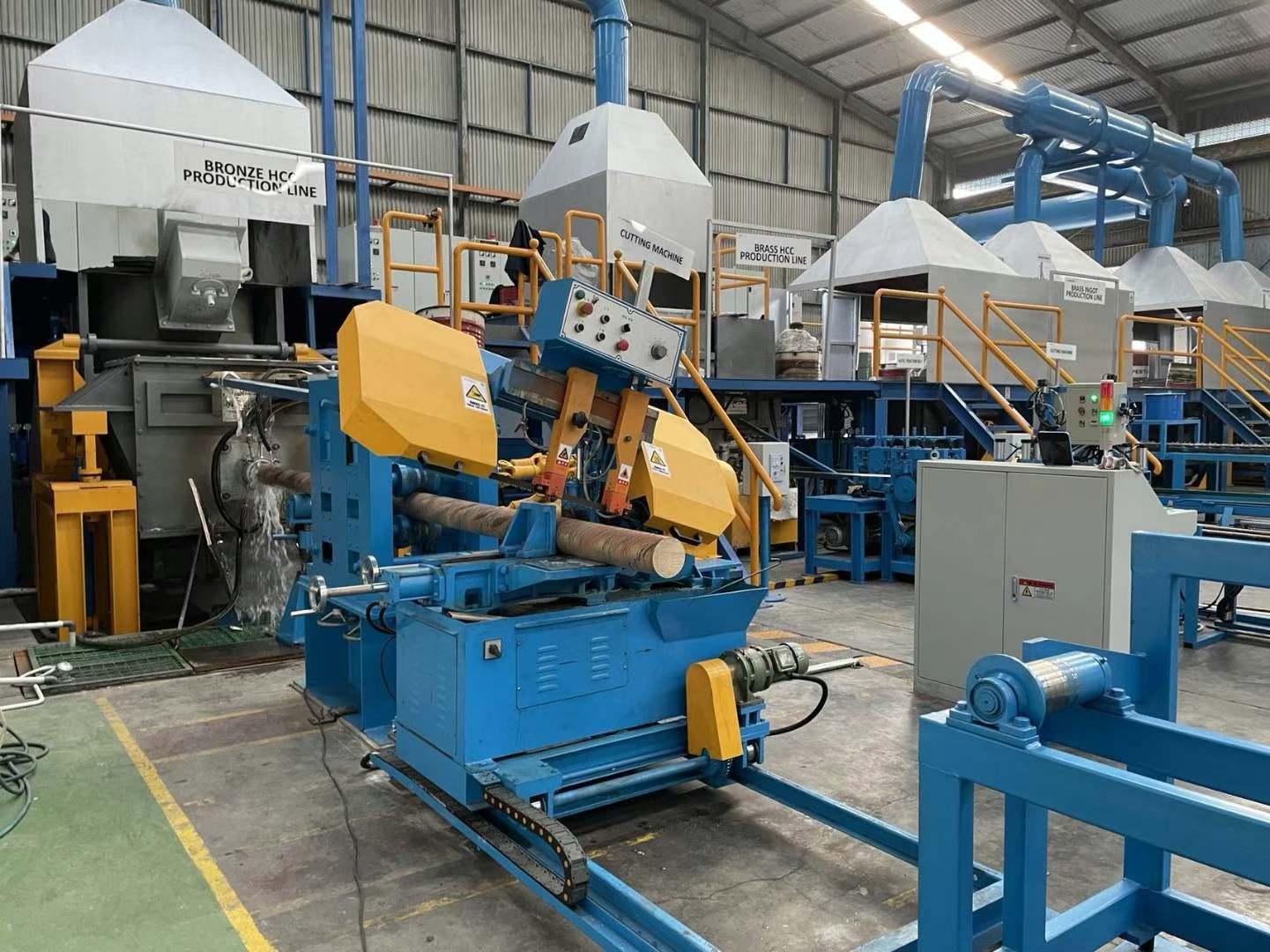

(cutting mahcine in horizontal continuous casting machine for bronze tube)

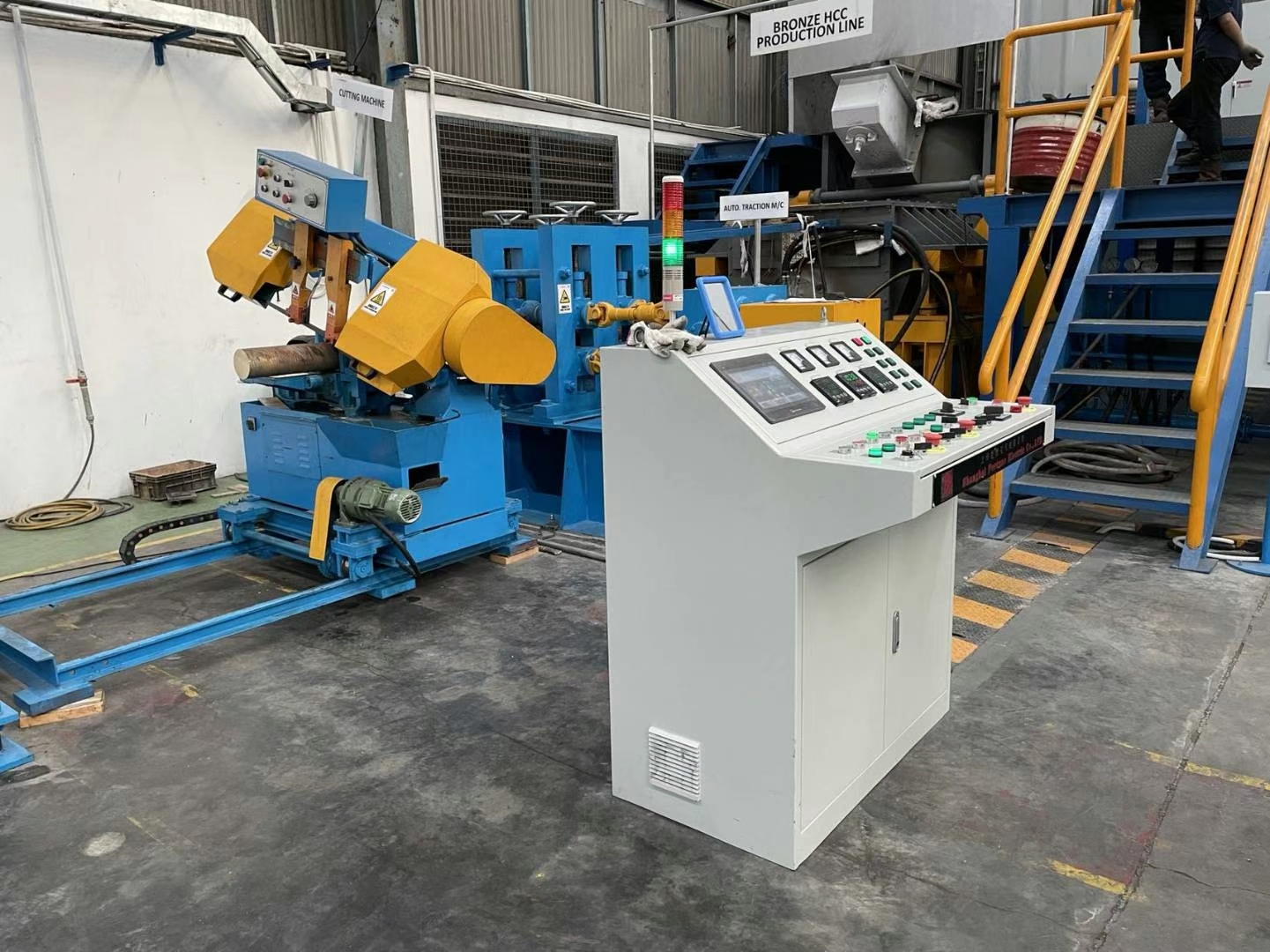

(horizontal continuous casting machine for bronze tube)

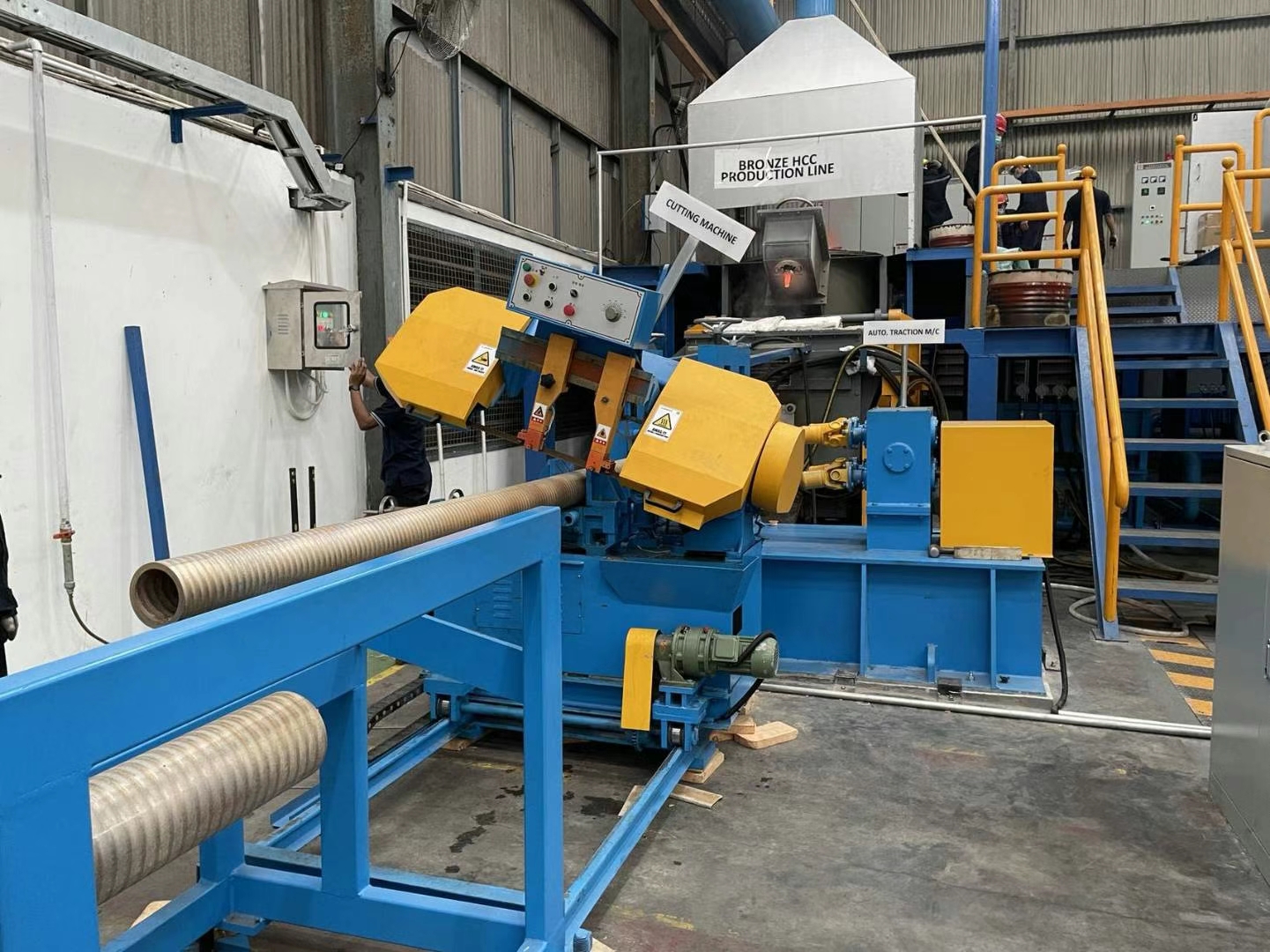

(cutting machine in horizontal continuous casting machine for bronze tube)Equipment parameters of a horizontal continuous casting machine
Model
200kg
300kg
500kg
750kg
Min. capacity (T)
0.15
0.2
0.3
0.5
Rated capacity of melting furnace (T)
0.8
1.2
1.8
2
Rated capacity of holding furnace (T)
1.5
2.8
3
4
Rated voltage of inductor (V)
380
380
380
380
Phase number (phase)
3
3
3
3
Frequency (HZ)
50
50
50
50
Melting rate (t/h)
0.2
0.3
0.5
0.75
Power consumption
(KW h/t)
300
280
260
260
Holding power (KW)
30
45
55
70
Rated power (KW)
60
90
120
180
Rated working temperature (℃)
1250
1250
1250
1250
Power factor
Before compensation：0.45-0.5 after compensation：0.95-1
Cooling water pressure (Mpa)
0.2-0.4
0.2-0.4
0.2-0.4
0.2-0.4
Cooling water volume (t/h)
1.6 coil water jacket
1.6 coil water jacket
1.6 coil water jacket
2.8 coil water jacket
Iron core weight (kg)
221
420
550
815
Molten hook weight (kg)
45
60
80
105
Model
1000kg
1500kg
2000kg
3000kg
Min. capacity (T)
0.55
0.6
0.7
0.85
Rated capacity of melting furnace (T)
2.2
3.5
5
7.5
Rated capacity of holding furnace (T)
Rated voltage of inductor (V)
380
380
380
380
Phase number (phase)
3
3
3
3
Frequency (HZ)
50
50
50
50
Melting rate (t/h)
1
1.5
2
3
Power consumption
(KW h/t)
260
240
240
230
Holding power (KW)
70
95
120
160
Rated power (KW)
240
360
480
720
Rated working temperature (℃)
1250
1250
1250
1250
Power factor
Before compensation：0.45-0.5 after compensation：0.95-1
Cooling water pressure (Mpa)
0.2-0.4
0.2-0.4
0.2-0.4
0.2-0.4
Cooling water volume (t/h)
2.8 coil water jacket
2.8 coil water jacket
3.8 coil water jacket
3.8 coil water jacket
Iron core weight (kg)
815
Molten hook weight (kg)
220
210
230
330
